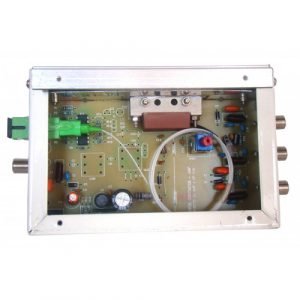

POWER offers 6V DC External Power Supply Optic Converter Node, which gives 90 dB RF Output @ 0 dBm Optical Input. Hybrid Optical Receiver technology for the application in HFC Networks. It’s operate on very low Power consumption (less then 5 Watt). You can Operate Power Pass on 35V DC Supply. Or even can be operated from Customers Set-Top box supply also. As Power Supply is external it is  Very Easy for Maintenance It has the capability to convert even weak optic signals to a high quality RF signal for further distribution in larger CATV network. Optical input power indicator is provided for easy of network maintenance.

Features

  • Hybrid Optical Receiver Module Technology
  • Very Small in size
  • Very Low Power Consumption
  • Very Low Heating
  • High RF output level

12V DC FTTH & Mini Amplifier

Specification

Circuit Performance
Optical Receiver Technology Hybrid Module
Optical Parameter
Optical Receiver Wavelength 1100nm to 1600nm
Optical Receiver Power +3 dBm to -8 dBm
RF Parameter
Maximum RF Output Lavel 100 dBµV @ 0 dBm Optical Input
RF Frequency Range 40 MHz to 870 MHz
Flatness In Bandwidth ± 0.75 dB
General Parameter
Supply Voltage 12V DC, 1 Amp | Customer STB Reverse Supply
Operating Temperature -40 to 50 °C
Power Consumption ≤ 4 Watt
Dimensions (L x W x H) 100mm x 170mm x 60mm
Weight 545 gm
Warranty 6 Months
12v adaptor option

With 12V Adaptor, Without 12v adaptor
